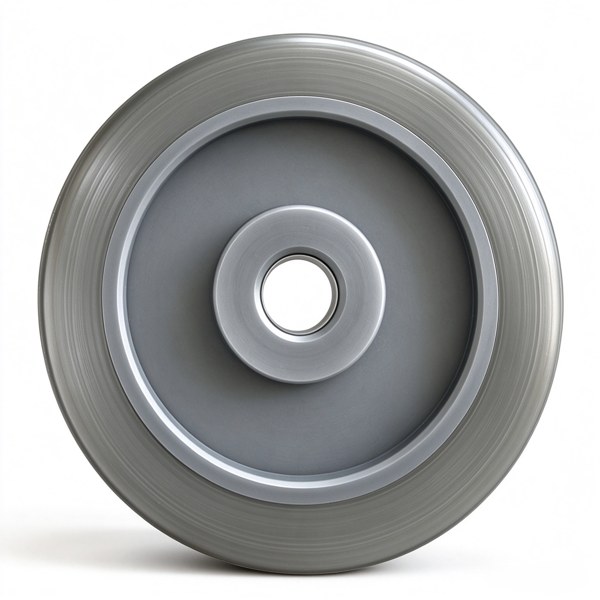

Wicthan® (85–95 Shore A)
Wicthan® (85–95 Shore A)
Wicthan®: General-purpose industrial polyurethane with many hardness options. Low rolling resistance, good abrasion resistance and grip, hydrolysis resistant for damp environments; cost-effective in volume.
Typical Operating Conditions
- Typical equipment: forklift, heavy-duty AGV and robot drive wheels; assembly line equipment.
- Load and speed: medium loads, frequent acceleration and braking, multi-shift duty.
- Environment: indoor and outdoor floors; hydrolysis resistant, suited to wet floors.
Material Parameters
| Property | Test method | Unit | Typical value |
|---|---|---|---|
| Hardness | ASTM D 2240 | Shore A | 85–95 |
| Tensile strength | ASTM D 412 | MPa | 45–60 |
| Elongation at break | ASTM D 412 | % | 448–540 |
| 300% modulus | ASTM D 412 | MPa | 18.4–26.5 |
| Tear strength | ASTM D 624 | kN/m | 88–145 |
| Rebound resilience | ASTM D 2632 | % | 39–54 |
| DIN abrasion | DIN 53516 | mm³ | 25–32 |
| Compression set (100 °C × 22 h) | ASTM D 395 | % | 26.7–33.9 |
| Vicat softening temperature | ASTM D 1525 (120 °C/h, 10 N) | °C | 158–194 |
| Continuous service temperature | — | °C | −40 to +80 |
| Short-term peak temperature | — | °C | +90 to +100 |
| Glass transition temperature (Tg) | — | °C | −45 to −50 |
Note: Wicthan® values are ranges across six hardness grades. Typical values measured on laboratory test specimens, for material selection only; whole-wheel performance depends on wheel diameter, tread thickness and operating conditions.
