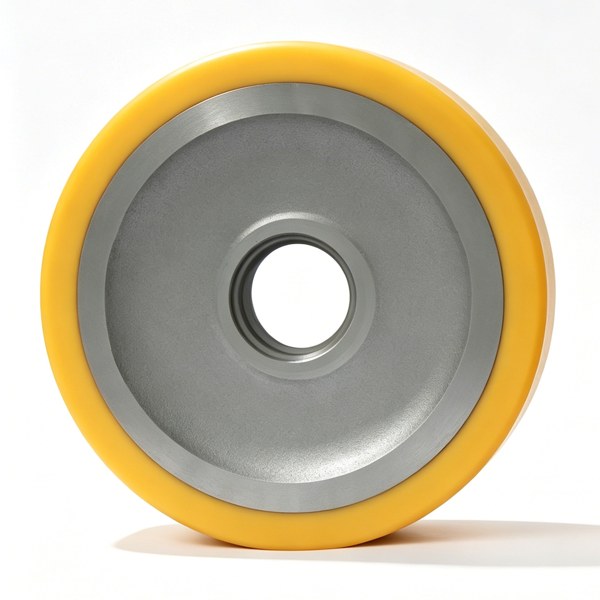

Blicthan® (95±2 Shore A)
Blicthan® (95±2 Shore A)
Blicthan®: High-purity refined polyurethane with very high abrasion resistance. Stable, consistent properties from batch to batch; long service life under heavy load at low speed, suited to dusty or abrasive duty.
Typical Operating Conditions
- Typical equipment: screening machine drive wheels, idler rollers and support rollers, bulk handling, heavy machinery.
- Load and speed: very high loads at low speed (≤16 km/h); continuous heavy-duty running.
- Environment: abrasive, dusty or gritty conditions; where wheel replacement is costly.
Material Parameters
| Property | Test method | Unit | Typical value |
|---|---|---|---|
| Hardness | ASTM D 2240 | Shore A | 95±2 |
| Tensile strength | ASTM D 412 | MPa | 50.5 |
| Elongation at break | ASTM D 412 | % | 460 |
| 300% modulus | ASTM D 412 | MPa | 21.8 |
| Tear strength | ASTM D 624 | kN/m | 112 |
| Rebound resilience | ASTM D 2632 | % | 42 |
| DIN abrasion | DIN 53516 | mm³ | 40 |
| Compression set (70 °C × 22 h) | ASTM D 395 | % | 26 |
| Vicat softening temperature | ASTM D 1525 (120 °C/h, 10 N) | °C | 188 |
| Continuous service temperature | — | °C | −40 to +100 |
| Short-term peak temperature | — | °C | +115 |
| Maximum running speed | — | km/h | ≤16 |
| Glass transition temperature (Tg) | — | °C | ≈ −45 |
Note: typical values measured on laboratory test specimens, for material selection only; whole-wheel performance depends on wheel diameter, tread thickness and operating conditions.
