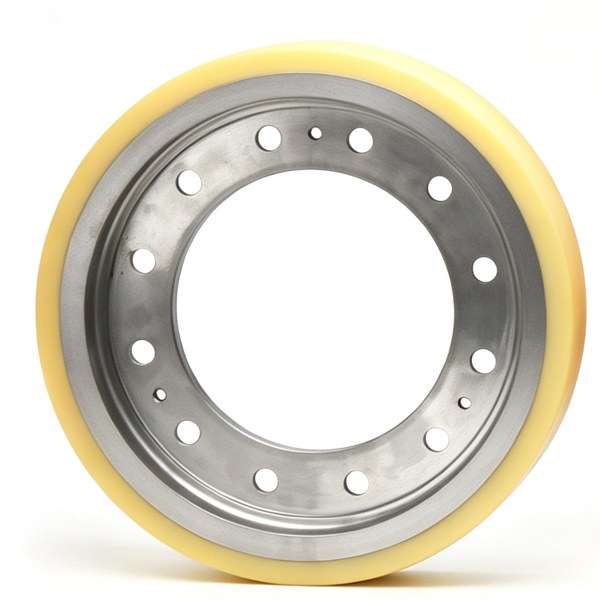

Vogthan® (95 Shore A)
Vogthan® (95 Shore A)
Vogthan®: Low heat build-up, high-rebound polyurethane. Low heat generation and energy loss in continuous rolling, carries load at high speed, good fatigue resistance, handles higher speeds for short periods.
Typical Operating Conditions
- Typical equipment: roller coaster running, guide and upstop wheels, guide wheels for special offshore equipment, high-speed rollers and drive wheels.
- Load and speed: carries load at high speed; high dynamic loads with fast load cycles.
- Duty: long continuous running without overheating; quiet, smooth ride.
Material Parameters
| Property | Test method | Unit | Typical value |
|---|---|---|---|
| Hardness | ASTM D 2240 | Shore A | 95 |
| Tensile strength | ASTM D 412 | MPa | 56 |
| Elongation at break | ASTM D 412 | % | 760 |
| 300% modulus | ASTM D 412 | MPa | 12.2 |
| Tear strength | ASTM D 624 | kN/m | 120 |
| Rebound resilience | ASTM D 2632 | % | 60 |
| DIN abrasion | DIN 53516 | mm³ | 24 |
| Compression set (100 °C × 22 h) | ASTM D 395 | % | 36.8 |
| Continuous service temperature | — | °C | −35 to +130 |
| Short-term peak temperature | — | °C | +150 |
| Glass transition temperature (Tg) | — | °C | ≈ −40 |
Note: typical values measured on laboratory test specimens, for material selection only; whole-wheel performance depends on wheel diameter, tread thickness and operating conditions.
