托盘轮

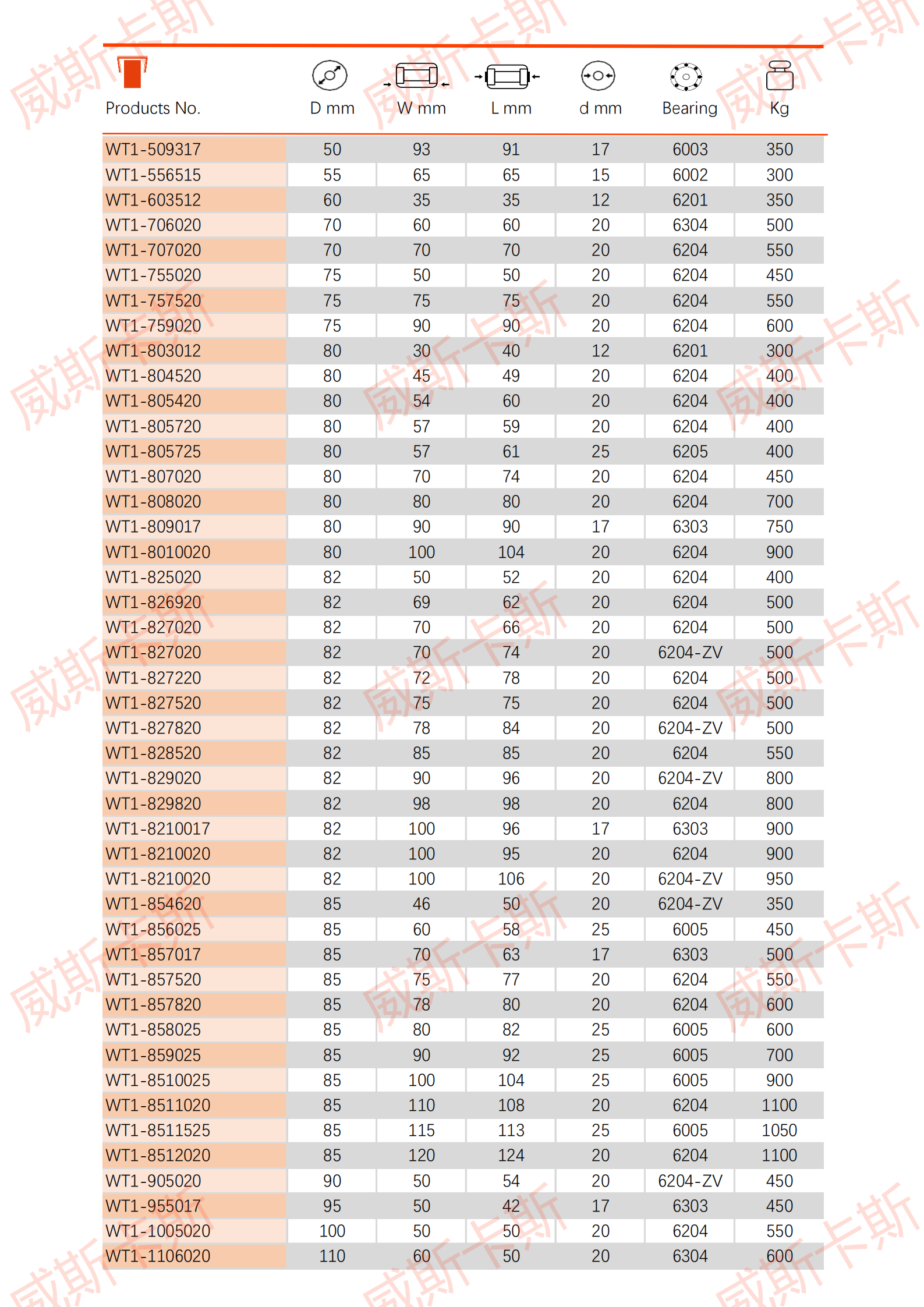

WT1

型号：WT1 轴承托盘轮
承载：350 - 1100 kg
硬度:  80A-75D
胎圈材质：Blicthan / Vogthan / Wicthan / Vulklthan

轮毂材质：钢 /铝 /不锈钢等

滚轮编号
Product No.
外径
Dia. Wheel
轮宽
Width
轮毂宽
Hub width
孔 径
Dia. hole
轴承
Bearing
承载（KG）
Loading
WT1-603515 60 35 35 15 6002 ZZ 220
WT1-606010 60 60 56 10 6200 2RS 400
WT1-754020 75 40 40 20 6204 ZZ 340
WT1-756220 75 62 62 20 6204 ZZ 510
WT1-757520 75 75 75 20 6204 ZZ 630
WT1-759520 75 95 95 20 6204 ZZ 800
WT1-803012 80 30 27 12 6201 ZZ 260
WT1-804020 80 40 40 20 6204 ZZ 350
WT1-805420 80 54 54 20 6204 ZZ 480
WT1-805420 80 54 60 20 6204 ZZV 480
WT1-805620 80 56 56 20 6204 ZZ 500
WT1-806020 80 60 66 20 6204 ZZV 530
WT1-806220 80 62 54 20 6204 ZZ 550
WT1-807020 80 70 70 20 6204 ZZ 630
WT1-807420 80 74 68 20 6004 ZZ 660
WT1-808020 80 80 80 20 6204 ZZ 720
WT1-809520 80 95 89 20 6004 ZZ 850
WT1-822812 82 28 26 12 6201 ZZ 250
WT1-823412 82 34 32 12 6201 ZZ 310
WT1-825020 82 50 52 20 6204 ZZ 450
WT1-826020 82 60 56 20 6204 ZZ 550
WT1-826020 82 60 60 20 6204 ZZ 550
WT1-826025 82 60 52 25 6205 ZZ 550
WT1-826025 82 60 60 25 6005 ZZ 550
WT1-826220 82 62 64 20 6204 ZZ 560
WT1-826520 82 65 65 20 6204 ZZ 590
WT1-826520 82 65 71 20 6204 ZZV 590
WT1-827020 82 70 62 20 6204 ZZ 640
WT1-827020 82 70 70 20 6204 ZZ 640
WT1-827020 82 70 72 20 6204 ZZV 640
WT1-827020 82 70 76 20 6204 ZZV 640
WT1-827220 82 72 72 20 6204 ZZ 660
WT1-827220 82 72 74 20 6204 ZZV 660
WT1-827220 82 72 78 20 6204 ZZV 660
WT1-828020 82 80 80 20 6204 ZZ 730
WT1-828220 82 82 86 20 6204 ZZV 750
WT1-828920 82 89 82 20 6204 ZZ 820
WT1-829020 82 90 90 20 6204 ZZ 830
WT1-829020 82 90 96 20 6204 ZZV 830
WT1-829820 82 98 98 20 6204 ZZ 910
WT1-8210020 82 100 96 20 6204 ZZ 920
WT1-8210020 82 100 100 20 6204 ZZ 920
WT1-8210020 82 100 104 20 6204 ZZV 920
WT1-838325 83 83 83 25 6205 ZZ 780
WT1-8311530 83 115 114 30 6206 ZZ 1070
WT1-847417 84 74 78 17 6006 2RS 690
WT1-855020 85 50 50 20 6204 ZZ 460
WT1-855025 85 50 50 25 6005 ZZ 460
WT1-856017 85 60 60 17 6303 ZZ 560
WT1-856020 85 60 60 20 6204 ZZ 560
WT1-856020 85 60 65 20 6204 ZZV 560
WT1-856520 85 65 65 20 6204 ZZ 610
WT1-857017 85 70 70 17 6303 ZZ 660
WT1-857020 85 70 70 20 6204 ZZ 660
WT1-857020 85 70 75 20 6204 ZZV 660
WT1-857517 85 75 75 17 6303 ZZ 720
WT1-857520 85 75 75 20 6204 ZZ 720
WT1-857525 85 75 75 25 6005 ZZ 720
WT1-857520 85 75 77 20 6204 ZZV 720
WT1-857520 85 75 79 20 6204 ZZV 720
WT1-857820 85 78 78 20 6204 ZZ 740
WT1-858017 85 80 82 17 6303 ZZ 770
WT1-858020 85 80 80 20 6204 ZZ 770
WT1-858020 85 80 85 20 6204 ZZV 770
WT1-858025 85 80 74 25 6205 ZZ 770
WT1-858025 85 80 80 25 6005 ZZ 770
WT1-858025 85 80 85 25 6005 ZZV 770
WT1-858520 85 85 85 20 6204 ZZ 820
WT1-858525 85 85 85 25 6005 ZZ 820
WT1-858717 85 87 89 17 6303 ZZ 830
WT1-859017 85 90 90 17 6303 ZZ 850
WT1-859020 85 90 90 20 6204 ZZ 850
WT1-859520 85 95 95 20 6204 ZZ 910
WT1-859520 85 95 100 20 6204 ZZV 910
WT1-8510017 85 100 100 17 6303 ZZ 960
WT1-8510020 85 100 100 20 6204 ZZ 960
WT1-8510020 85 100 102 20 6204 ZZV 960
WT1-8510020 85 100 104 20 6204 ZZV 960
WT1-8510025 85 100 100 25 6005 ZZ 960
WT1-8510025 85 100 104 25 6005 ZZV 960
WT1-8510525 85 105 110 25 6005 ZZV 1010
WT1-8511025 85 110 110 25 6005 ZZ 1060
WT1-8511025 85 110 114 25 6005 ZZV 1060
WT1-8512025 85 120 124 25 6005 ZZV 1130
WT1-904220 90 42 40 20 6204 ZZ 420
WT1-905020 90 50 48 20 6204 ZZ 500

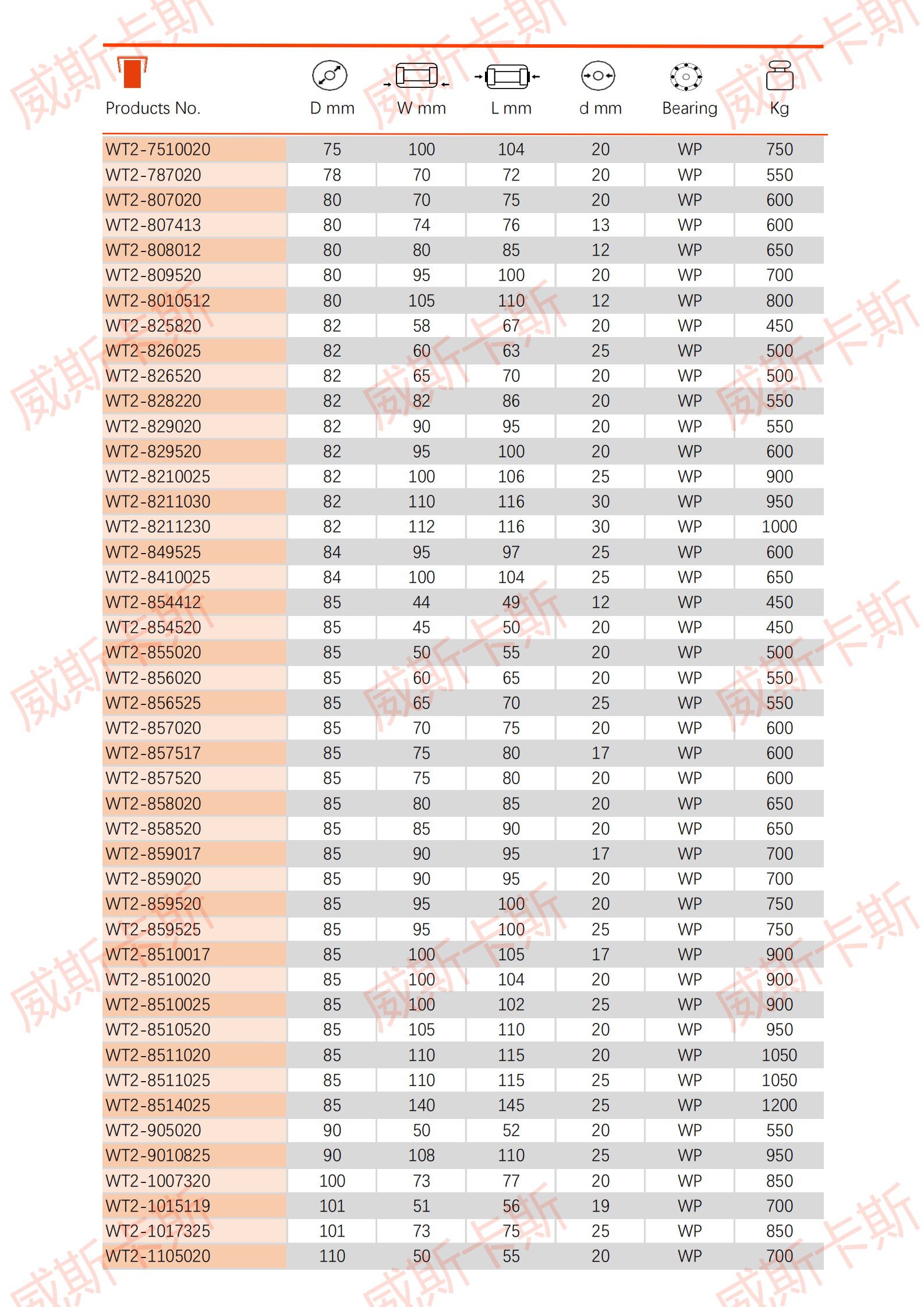

WT2

型号：WT2 防水轴承托盘轮
承载：450 - 1200 kg
硬度： 80A-75D
胎圈材质：
Blicthan  Vogthan   Wicthan   Vulklthan
轮毂材质：钢/铝

滚轮编号
Product No.
外径
Dia. Wheel
轮宽
Width
轮毂宽
Hub width
孔 径
Dia. hole
轴承
Bearing
承载（KG）
Loading
WT2-826012 82 60 64 12 滚珠轴承 550
WT2-826020 82 60 64 20 滚珠轴承 550
WT2-827020 82 70 74 20 滚珠轴承 640
WT2-828220 82 82 86 20 滚珠轴承 750
WT2-8210020 82 100 104 20 滚珠轴承 920
WT2-8211025 82 110 115 25 滚珠轴承 1010
WT2-856012 85 60 65 12 滚珠轴承 560
WT2-856017 85 60 65 17 滚珠轴承 560
WT2-856020 85 60 65 20 滚珠轴承 560
WT2-856025 85 60 65 25 滚珠轴承 560
WT2-856512 85 65 70 12 滚珠轴承 610
WT2-856517 85 65 70 17 滚珠轴承 610
WT2-856520 85 65 70 20 滚珠轴承 610
WT2-856525 85 65 70 25 滚珠轴承 610
WT2-857012 85 70 75 12 滚珠轴承 660
WT2-857017 85 70 75 17 滚珠轴承 660
WT2-857020 85 70 75 20 滚珠轴承 660
WT2-857025 85 70 75 25 滚珠轴承 660
WT2-857512 85 75 80 12 滚珠轴承 720
WT2-857517 85 75 80 17 滚珠轴承 720
WT2-857520 85 75 80 20 滚珠轴承 720
WT2-857525 85 75 80 25 滚珠轴承 720
WT2-858012 85 80 85 12 滚珠轴承 770
WT2-858017 85 80 82 17 滚珠轴承 770
WT2-858017 85 80 85 17 滚珠轴承 770
WT2-858020 85 80 85 20 滚珠轴承 770
WT2-858025 85 80 85 25 滚珠轴承 770
WT2-858512 85 85 90 12 滚珠轴承 820
WT2-858517 85 85 90 17 滚珠轴承 820
WT2-858520 85 85 90 20 滚珠轴承 820
WT2-858525 85 85 90 25 滚珠轴承 820
WT2-859012 85 90 95 12 滚珠轴承 850
WT2-859017 85 90 95 17 滚珠轴承 850
WT2-859020 85 90 95 20 滚珠轴承 850
WT2-859025 85 90 95 25 滚珠轴承 850
WT2-859512 85 95 100 12 滚珠轴承 910
WT2-859517 85 95 100 17 滚珠轴承 910
WT2-859520 85 95 100 20 滚珠轴承 910
WT2-859525 85 95 100 25 滚珠轴承 910
WT2-8510012 85 100 105 12 滚珠轴承 960
WT2-8510017 85 100 105 17 滚珠轴承 960
WT2-8510020 85 100 105 20 滚珠轴承 960
WT2-8510025 85 100 105 25 滚珠轴承 960
WT2-8510512 85 105 110 12 滚珠轴承 1010
WT2-8510517 85 105 110 17 滚珠轴承 1010
WT2-8510520 85 105 110 20 滚珠轴承 1010
WT2-8510525 85 105 110 25 滚珠轴承 1010
WT2-8511012 85 110 115 12 滚珠轴承 1060
WT2-8511017 85 110 115 17 滚珠轴承 1060
WT2-8511020 85 110 115 20 滚珠轴承 1060
WT2-8511025 85 110 115 25 滚珠轴承 1060

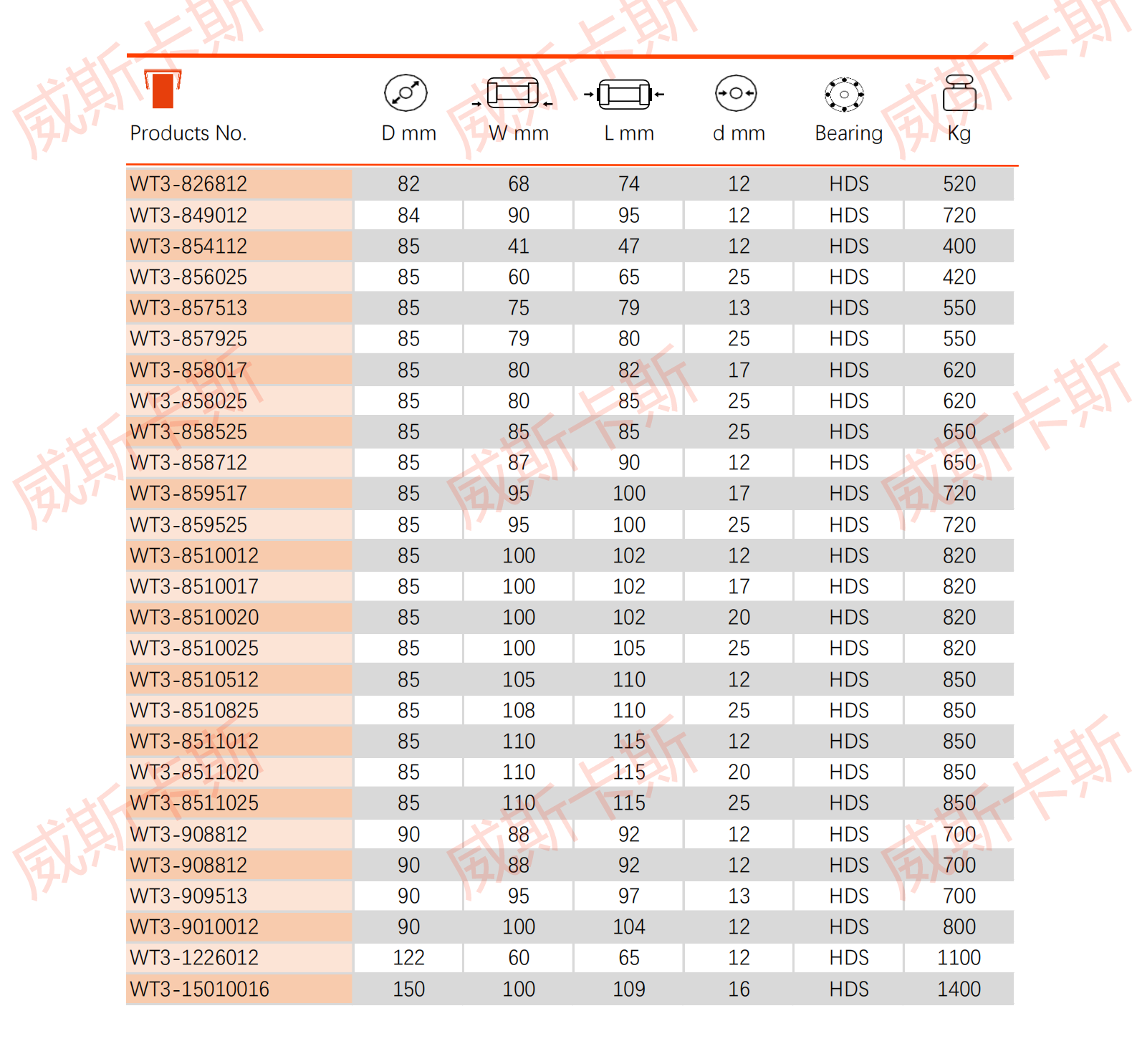

WT3

型号：WT3  重型轴承托盘轮
承载：400 - 1400 kg
硬度 ： 90A-75D
胎圈材质：
Blicthan  Vogthan   Wicthan   Vulklthan
轮毂材质：钢/铝

滚轮编号
Product No.
外径
Dia. Wheel
轮宽
Width
轮毂宽
Hub width
孔 径
Dia. hole
轴承
Bearing
承载（KG）
Loading
WT3-807020 80 70 70 20 6204 ZZ 630
WT3-826020 82 60 60 20 6204 ZZ 550
WT3-826025 82 60 60 25 6005 ZZ 550
WT3-826520 82 65 65 20 6204 ZZ 590
WT3-826520 82 65 71 20 6204 ZZV 590
WT3-827020 82 70 70 20 6204 ZZ 640
WT3-827020 82 70 72 20 6204 ZZV 640
WT3-8210020 82 100 100 20 6204 ZZ 920
WT3-8210020 82 100 104 20 6204 ZZV 920
WT3-856017 85 60 60 17 6303 ZZ 560
WT3-856020 85 60 60 20 6204 ZZ 560
WT3-856020 85 60 65 20 6204 ZZV 560
WT3-857017 85 70 70 17 6303 ZZ 660
WT3-857020 85 70 70 20 6204 ZZ 660
WT3-857020 85 70 75 20 6204 ZZV 660
WT3-857517 85 75 75 17 6303 ZZ 720
WT3-857520 85 75 75 20 6204 ZZ 720
WT3-857525 85 75 75 25 6005 ZZ 720
WT3-858017 85 80 82 17 6303 ZZ 770
WT3-858020 85 80 80 20 6204 ZZ 770
WT3-858020 85 80 85 20 6204 ZZV 770
WT3-858025 85 80 80 25 6005 ZZ 770
WT3-858025 85 80 85 25 6005 ZZV 770
WT3-859017 85 90 90 17 6303 ZZ 850
WT3-859020 85 90 90 20 6204 ZZ 850
WT3-8510017 85 100 100 17 6303 ZZ 960
WT3-8510020 85 100 100 20 6204 ZZ 960
WT3-8510020 85 100 102 20 6204 ZZV 960
WT3-8510025 85 100 100 25 6005 ZZ 960

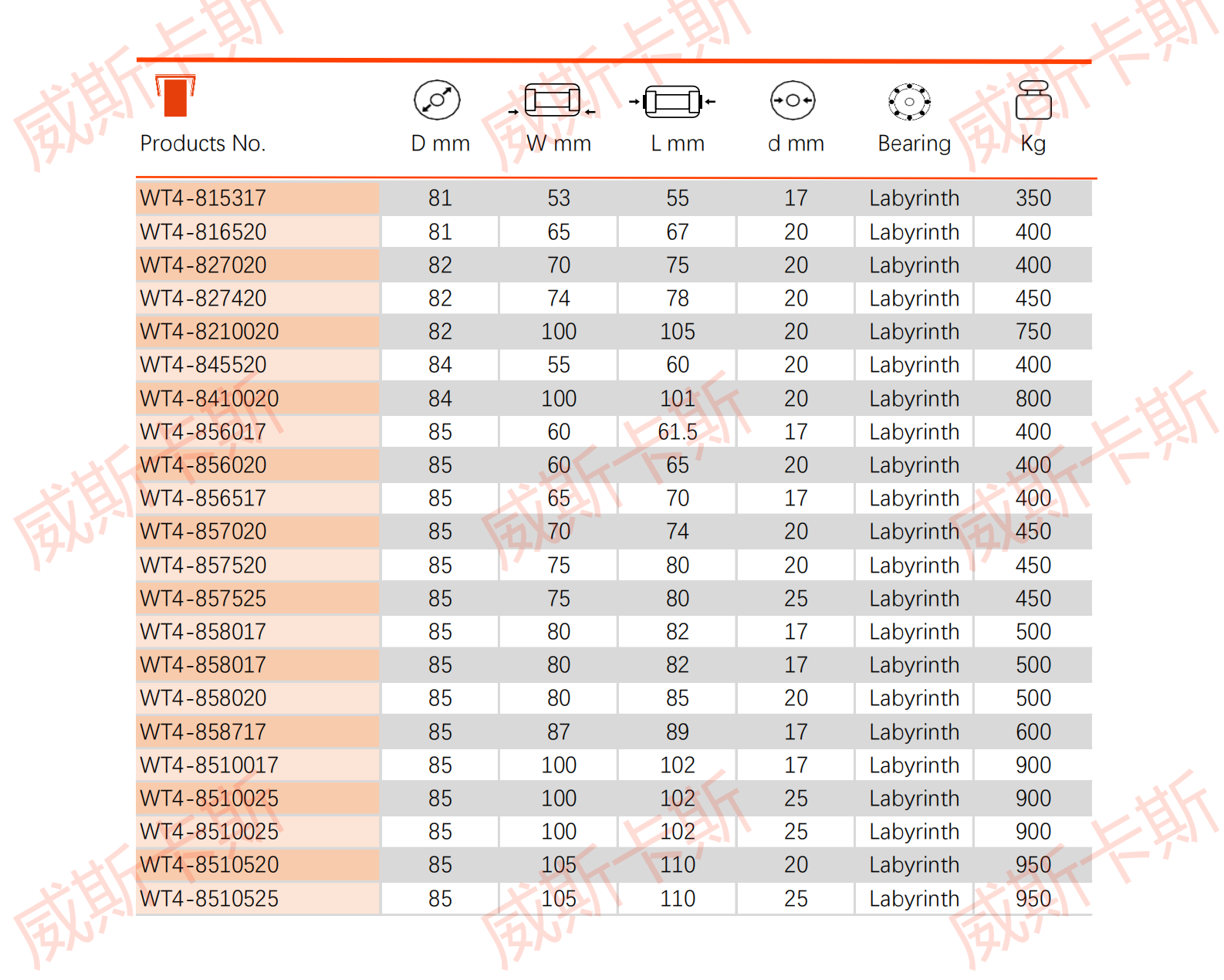

WT4

型号：WT4  迷宫型轴承托盘轮
承载：350 - 950 kg
硬度： 85A-75D
胎圈材质：
Blicthan  Vogthan   Wicthan   Vulklthan
轮毂材质：钢/铝

滚轮编号
Product No.
外径
Dia. Wheel
轮宽
Width
轮毂宽
Hub width
孔 径
Dia. hole
轴承
Bearing
承载（KG）
Loading
WT4-815317 81 53 55 17 Labyrinth 350
WT4-816520 81 65 67 20 Labyrinth 400
WT4-827020 82 70 75 20 Labyrinth 400
WT4-827420 82 74 78 20 Labyrinth 450
WT4-8210020 82 100 105 20 Labyrinth 750
WT4-845520 84 55 60 20 Labyrinth 400
WT4-8410020 84 100 101 20 Labyrinth 800
WT4-856017 85 60 61.5 17 Labyrinth 400
WT4-856020 85 60 65 20 Labyrinth 400
WT4-856517 85 65 70 17 Labyrinth 400
WT4-857020 85 70 74 20 Labyrinth 450
WT4-857520 85 75 80 20 Labyrinth 450
WT4-857525 85 75 80 25 Labyrinth 450
WT4-858017 85 80 82 17 Labyrinth 500
WT4-858017 85 80 82 17 Labyrinth 500
WT4-858020 85 80 85 20 Labyrinth 500
WT4-858717 85 87 89 17 Labyrinth 600
WT4-8510017 85 100 102 17 Labyrinth 900
WT4-8510025 85 100 102 25 Labyrinth 900
WT4-8510025 85 100 102 25 Labyrinth 900
WT4-8510520 85 105 110 20 Labyrinth 950
WT4-8510525 85 105 110 25 Labyrinth 950

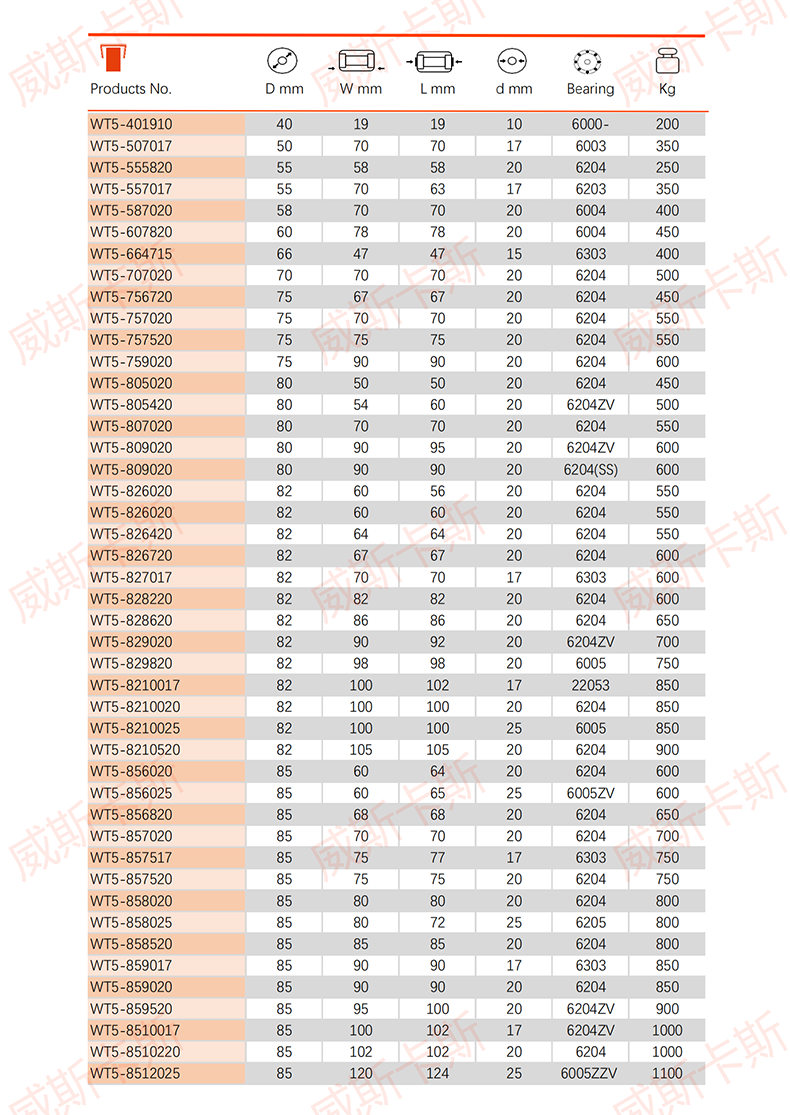

WT5

型号：WT5
承载：200 - 1100 kg
硬度：90A-75D
胎圈材质：Mcnylon

轮毂材质 ：钢/铝

滚轮编号
Product No.
外径
Dia. Wheel
轮宽
Width
轮毂宽
Hub width
孔 径
Dia. hole
轴承
Bearing
承载（KG）
Loading
WT5-806120 80 61 67 20 6204 ZZV 600
WT5-807020 80 70 76 20 6204 ZZV 650
WT5-807420 80 74 80 20 6204 ZZV 700
WT5-825420 82 54 54 20 6204 ZZ 600
WT5-825420 82 54 60 20 6204 ZZV 600
WT5-826020 82 60 60 20 6204 ZZ 610
WT5-826025 82 60 60 25 6005 ZZ 610
WT5-826220 82 62 65 20 6204 ZZV 620
WT5-826420 82 64 64 20 6204 ZZ 650
WT5-826620 82 66 72 20 6204 ZZV 675
WT5-826820 82 68 74 20 6204 ZZV 675
WT5-827020 82 70 62 20 6204 ZZ 700
WT5-827020 82 70 70 20 6204 ZZ 700
WT5-827320 82 73 79 20 6204 ZZV 700
WT5-827520 82 75 75 20 6204 ZZ 750
WT5-827920 82 79 85 20 6204 ZZV 800
WT5-828020 82 80 80 20 6204 ZZ 800
WT5-828420 82 84 84 20 6204 ZZ 850
WT5-829120 82 91 97 20 6204 ZZV 900
WT5-829320 82 93 93 20 6204 ZZ 900
WT5-829820 82 98 98 20 6204 ZZ 975
WT5-8210020 82 100 100 20 6204 ZZ 1000
WT5-854020 85 40 40 20 6204 ZZ 420
WT5-856017 85 60 60 17 6303 ZZ 650
WT5-856020 85 60 60 20 6204 ZZ 650
WT5-856520 85 65 65 20 6204 ZZ 700
WT5-857020 85 70 70 20 6204 ZZ 750
WT5-857517 85 75 78 17 6006 2RS 800
WT5-857520 85 75 75 20 6204 ZZ 800
WT5-858020 85 80 80 20 6204 ZZ 850
WT5-858520 85 85 85 20 6204 ZZ 900
WT5-859020 85 90 90 20 6204 ZZ 950
WT5-8510017 85 100 103 17 6006 2RS 1100
WT5-8510020 85 100 100 20 6204 ZZ 1100

WT6

型号：WT6
承载：350 - 600 kg
硬度：90A-97A
胎圈材质：Mcnylon

轮毂材质：钢/铝

滚轮编号
Product No.
外径
Dia. Wheel
轮宽
Width
轮毂宽
Hub width
孔 径
Dia. hole
轴承
Bearing
承载（KG）
Loading
WT6-557520 55 75 77 20 WP 350
WT6-5510020 55 100 102 20 OTS 350
WT6-787020 78 70 72 20 WP 650
WT6-789420 78 94 77 20 OTS 700
WT6-826020 82 60 64 20 WP 600
WT6-826520 82 65 70 20 WP 650
WT6-829717 82 97 100 17 WP 950
WT6-829820 82 98 104 20 WP 950
WT6-8210020 82 100 104 20 OTS 950
WT6-846820 84 68 745 20 WP 550
WT6-847020 84 70 755 20 WP 550
WT6-847520 84 75 80 20 OTS 600
WT6-855917 85 59 61 17 L 450
WT6-856520 85 65 70 20 L 500
WT6-857517 85 75 78 17 L 550
WT6-1005020 100 50 56 20 WP 600
